Prestressed Steel Strand

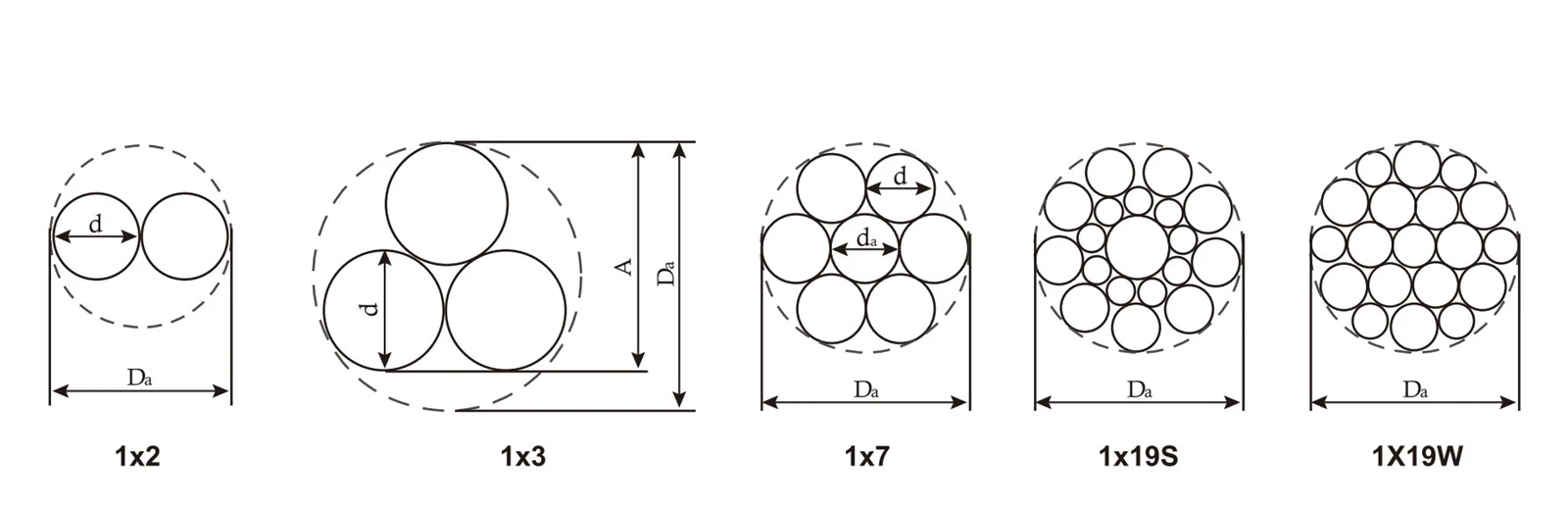

High Strength Low Relaxation Prestressed Steel Strand is composed of 2, 3, 7, or 19 precisely twisted wires that undergo stabilizing treatment. This thermal-mechanical process locks in the tension, resulting in a product with less than 2.5% relaxation (as per standard), making it ideal for high-efficiency concrete structures.
By utilizing this advanced material, engineers can design structures with greater span lengths and improved load-bearing capacity. The strand's uniform elongation and high tensile strength ensure that the concrete is effectively prestressed, eliminating the risk of structural failure.
- BOND STRENGTH
|
0.5 IN (12.70mm), GRADE 270(1860) STRAND |
Bond-strength tests performed in accordance with Test Method A1081/A1081M. |
|
0.6 IN (15.24mm), GRADE 270(1860) STRAND |
Bond-strength tests performed in accordance with Test Method A981/A981M. |
Product Introduction
- Material: high-carbon steel wire rod, etc.
- Meet requirements: ASTM A416/A416M:2012, GBT/5224:2014, pr EN10138-3:2011, IRAM-IASU 500-07:2005, ABNT NBR7438, BS5896, GOST13840, etc.
- Specifications: 9.5, 11.1, 12.7, 15.2, 15.7, 17.8, 19.3, 20.3, 21.8, 28.6mm, etc.
- Logo & package: As your requirements.
- Other related products: prestressed steel wire, anchorage, galvanized steel strand, etc.
product Specification
ASTM A416/A416M:2012, 1X7 PRESTRESSED STEEL STRAND
|
Grade |
Nominal diameter |
Tolerance on Diameter |
Nominal Area of Section |
Weight of strand |
Tensile Strength |
Minimum Breaking load |
Minimum load at 1% Extension |
Elongation Lo=610mm |
Lay Length |
The Relaxation at 1000h (initial load to 70% of nominal max load ) (r/%) Not more than |
|||
|
(mm) |
(in.) |
(mm) |
(mm2) |
(in.2) |
(kg/ 1000m) |
(lb/ 1000ft) |
(N/mm2) |
(KN) |
(KN) |
(%) |
mm |
||
|
270 |
9.53 |
3/8 |
+0.65,-0.15 |
54.8 |
0.085 |
432 |
290 |
1860 |
102.3 |
92.1 |
3.5 |
(12-16)d |
2.5 |
|
11.11 |
7/16 |
+0.65,-0.15 |
74.2 |
0.115 |
582 |
390 |
1860 |
137.9 |
124.1 |
||||
|
12.7 |
1/2 |
+0.65,-0.15 |
98.7 |
0.153 |
775 |
520 |
1860 |
183.7 |
165.3 |
||||
|
15.24 |
3/5 |
+0.65,-0.15 |
140 |
0.217 |
1102 |
740 |
1860 |
260.7 |
234.6 |
||||
|
17.78 |
7/10 |
+0.65,-0.15 |
189.7 |
0.294 |
1487 |
1000 |
1860 |
353.2 |
318 |
||||
product details

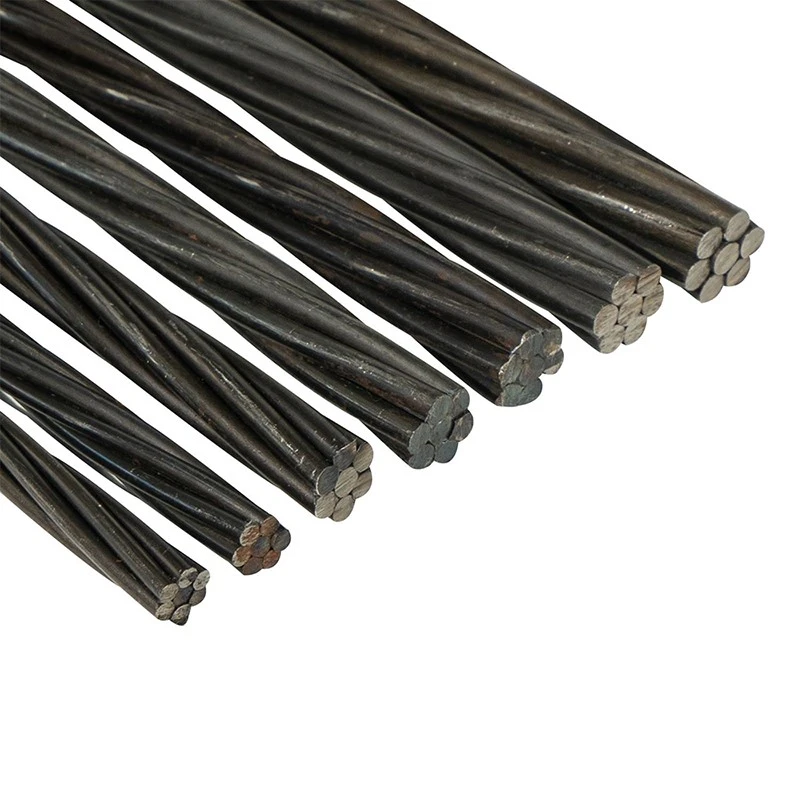

- 1x7 wire prestressed steel strand:
- High Tensile Strength.
- Clean Surface, phosphating layer.

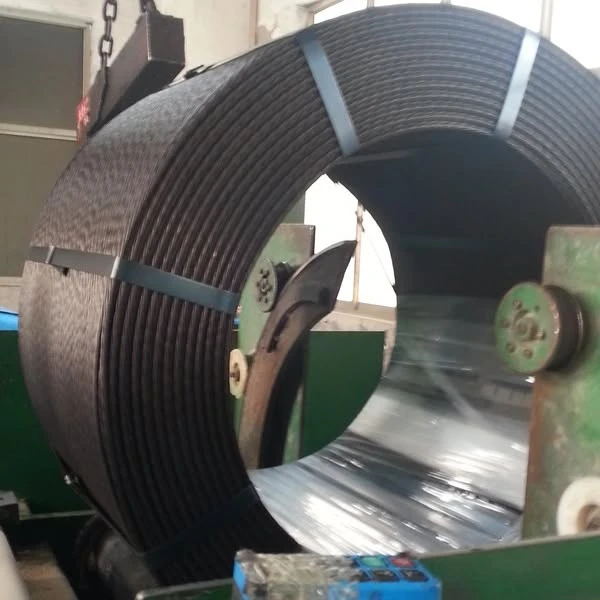

- Strands distributed neatly on the reel.

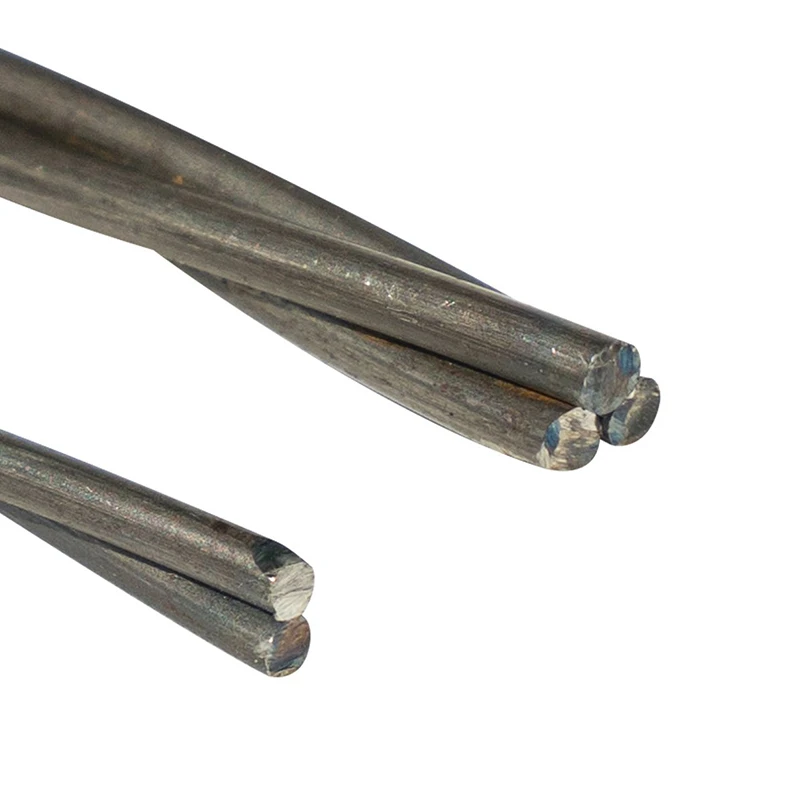

- 1x2 and 1x3 wire Prestressed strand:
- High Tensile Strength, full specifications from 2x2.25 to 3x6.00mm.
- Strand Lay Length could be as per customer's requirement.
- Package can be as per clients' requirement.

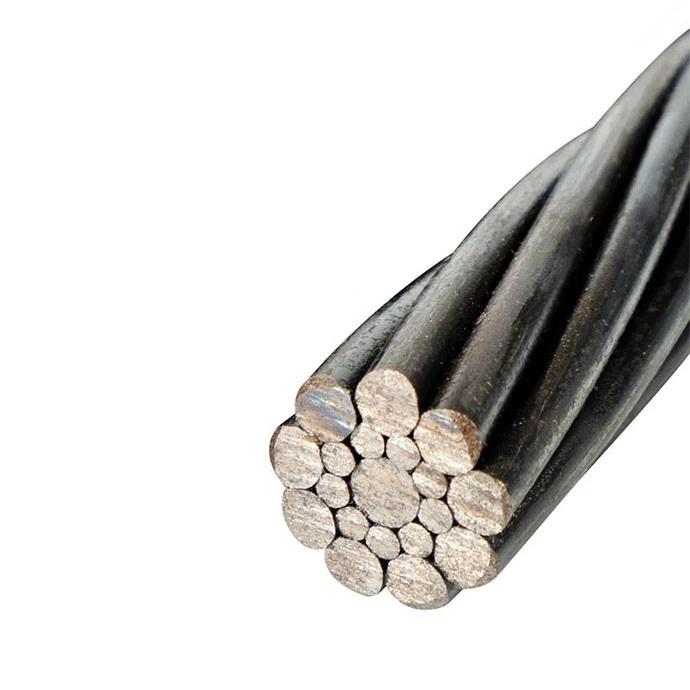

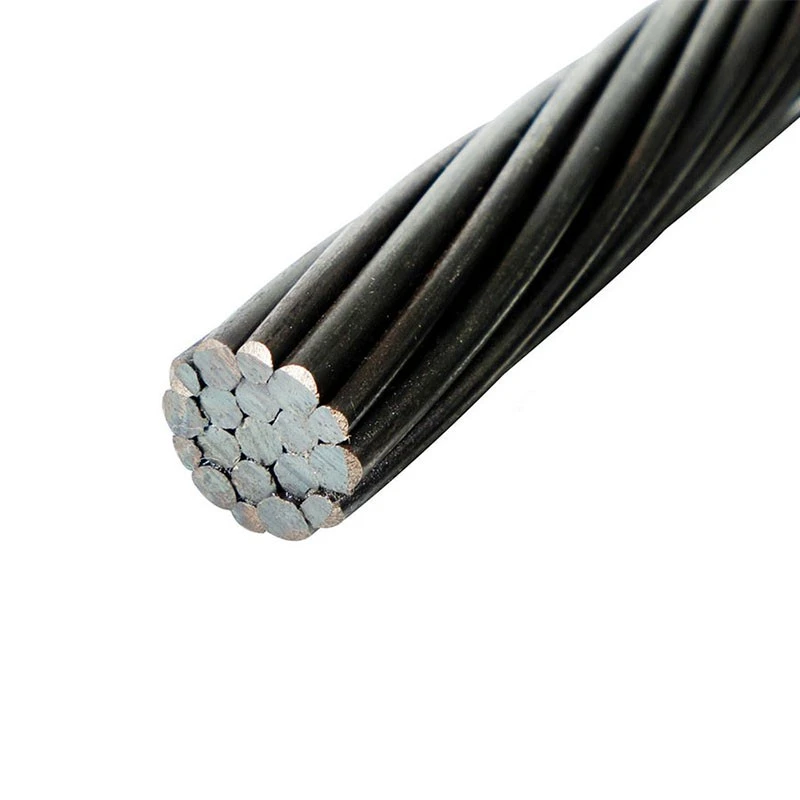

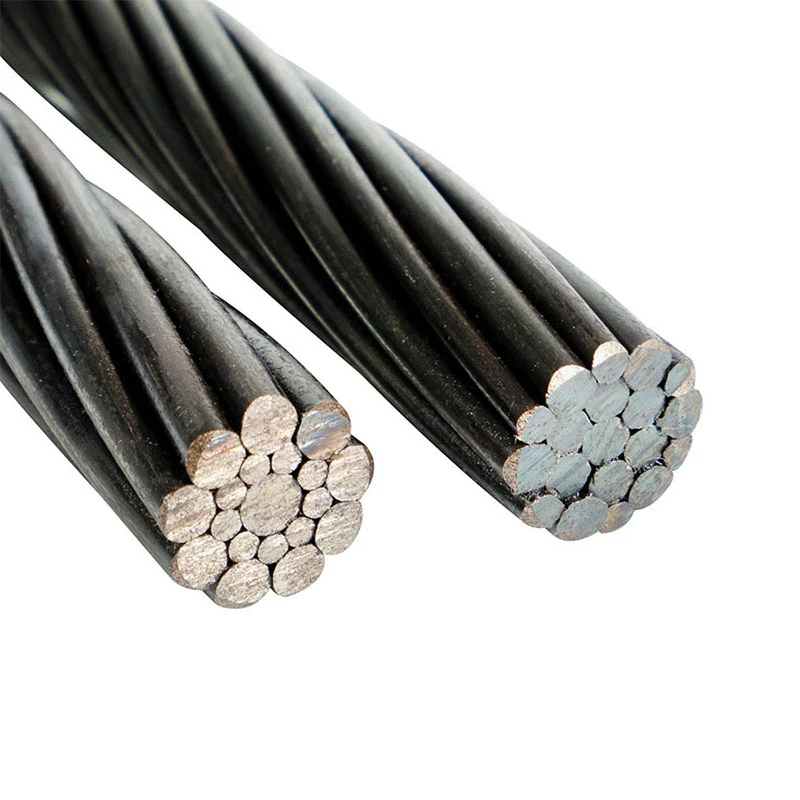

- 19-wire PC strand, also known as a 19-wire prestressed steel strand, is a type of construction material used in reinforced concrete structures. We have 17.8 mm, 19.3mm, 20.3mm, 21.8mm, 28.6mm, etc.
Production Applications
-Where can our 1x7 PC strand be used?

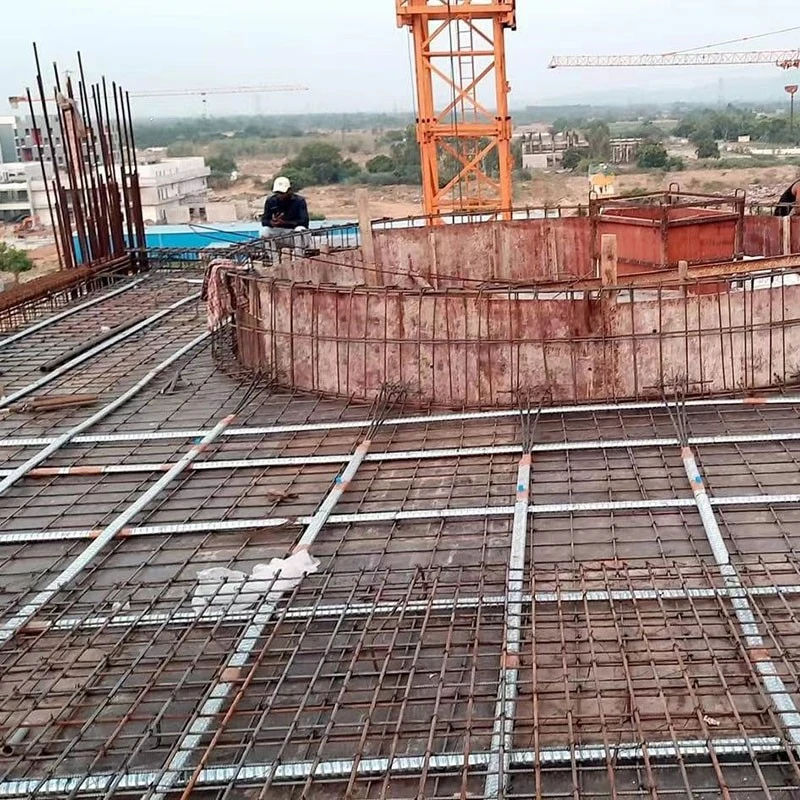

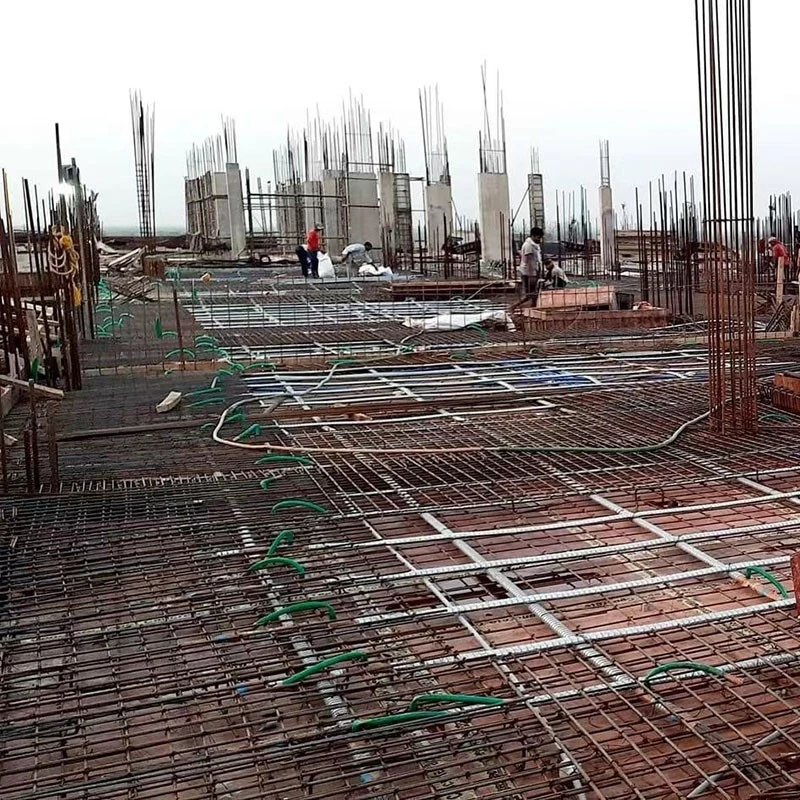

Our PC steel strand are mainly used in construction of long span bridge, hydropower dam, nuclear power plant. And it also could be used long span building, such as large airport, wide cast-in-place floor.

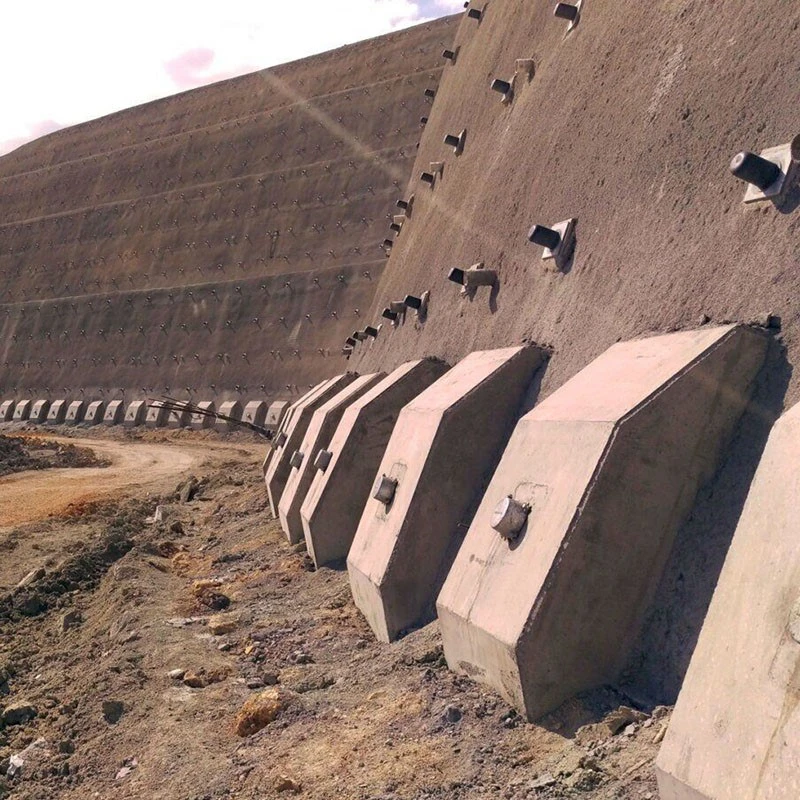

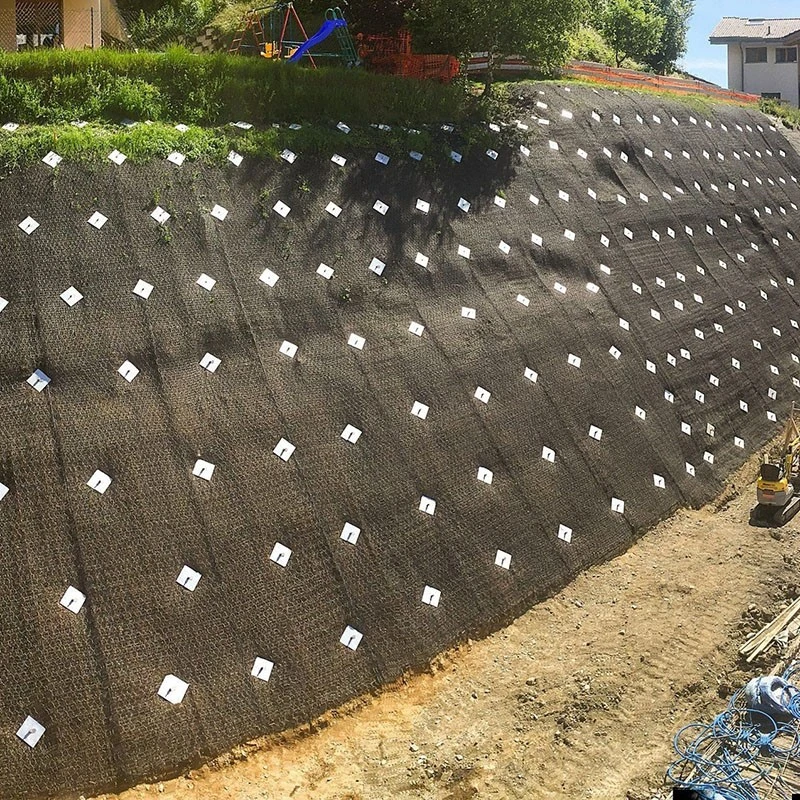

- Other use: pole and pile manufacture; hollow core slab manufacture; rock stabilization, slope support, slope reinforcement and other geotechnical engineering; silo construction;
-Where can our 1x3 and 1x2 PC strand be used?
- Our products can be used in manufacturing T/I beam, Slab, pile, poles, sleepers......
-Where can our 1x19 PC strand be used?
Using 19-wire PC strand can improve structural performance, increased load-carrying capacity, reduced cracking, and enhanced durability. It allows for longer spans and thinner concrete sections, leading to more aesthetically pleasing and cost-effective designs.
- Sealed type 19-wire pc strand as mining cable bolt has following main advantages:
- Super high breaking force , the load capacity is very high, much safe;
- Construction is much more easy , save a lot of time for construction under ground.
Certificate

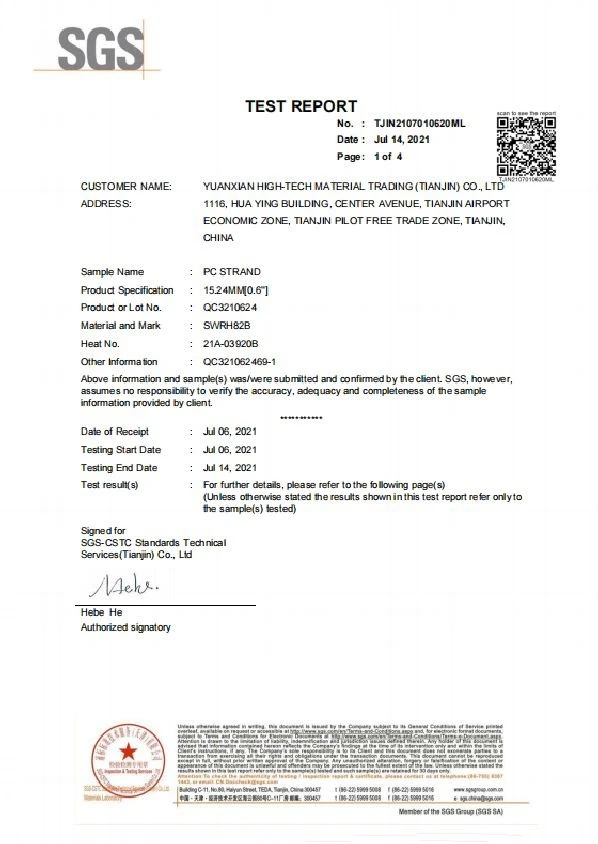

Our Prestressed steel strands have CE, SGS, ISO Certificates.
Packaging and delivery

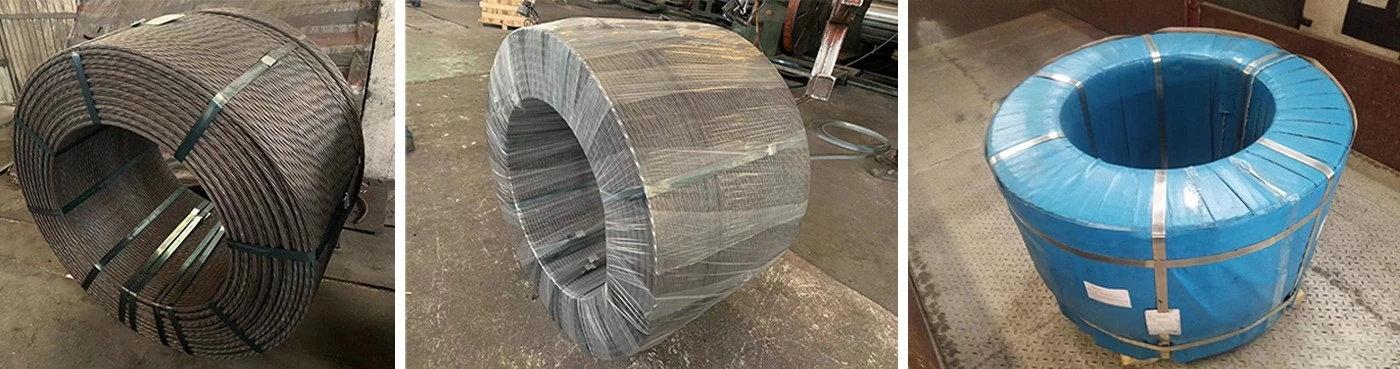

Packing: 8 steel strips + PE film + packing cloth composed by paper and woven + pallet .
Packaging Dimensions:
|
STEEL STRAND REEL DIMENSIONS |
7 WIRE PRESTRESSED STRAND |
|
|
Internal diameter(mm) |
Min. 720 / Max. 850 |
Min. 760 |
|
External diameter(mm) |
Max. 1300 |
Min. 1200 |
|
Height(mm) |
Min. 300 / Max. 320 |
Min. 800 |
|
Weight(kg) |
850kg / 775m |
/ |
Note: The above are standard parameters, specific dimensions can be adjusted according to actual requirements.
|
COIL DIMENSIONS |
2-3 WIRE PRESTRESSED STRAND |
|
|
Internal diameter(mm) |
209 / 310 (±10) |
770 / 920 (±20) |
|
External diameter(mm) |
600 ~ 750 |
1200 ~ 1500 |
|
Width(mm) |
180 ~ 220 (±10) |
530 ~ 750 (±15) |
|
Weight(kg) |
150 ~ 250 |
1300 ~ 3300 |
Note: The above are standard parameters, specific dimensions can be adjusted according to actual requirements.
FAQ
1. What is your delivery time?
We offer fast delivery: stock items ship in 7-15 days, while custom orders typically take 15-30 workdays, depending on your specific quantity.
2. How do you guarantee product quality?
Quality is verified through Mill Test Certificates (MTC) included with every shipment, and we fully support third-party inspections for your peace of mind.
3. Are there any hidden costs?
No. Our quotations are transparent and all-inclusive, ensuring you won't encounter any unexpected or additional fees.
4. Do you provide samples?
Yes, we provide samples for a nominal fee of $1; you just need to cover the freight cost to evaluate our quality firsthand.
5. What payment terms do you accept?
We accept T/T at sight and L/C, as well as Cash and Western Union. Please contact us if you require alternative arrangements.
6. What is your MOQ?
Our standard MOQ is usually one container, but we offer flexibility for specific items; please get in touch to discuss your requirements.
7.Can you produce according to my drawing?
Absolutely. We specialize in OEM and custom manufacturing, and our engineering team can produce exact specifications based on your drawings.
